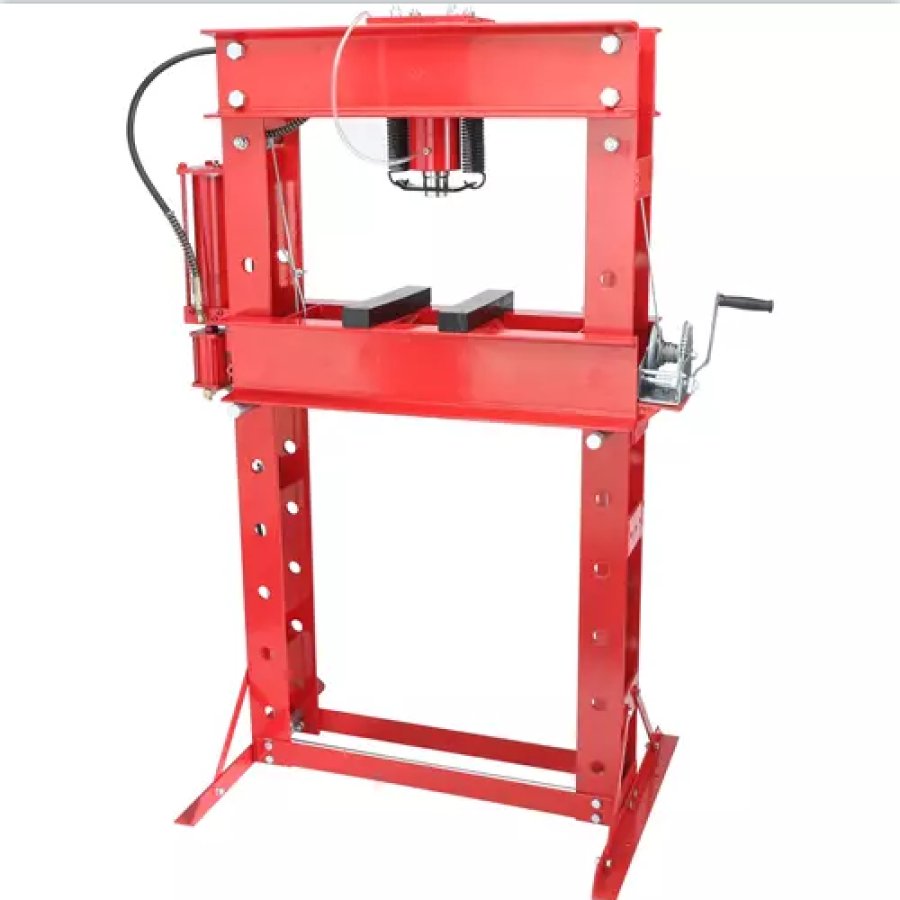

50 Ton Air Hydraulic Shop Press

The two-speed pump operates the ram at a slow or fast pace to accommodate a wide variety of pressing applications.

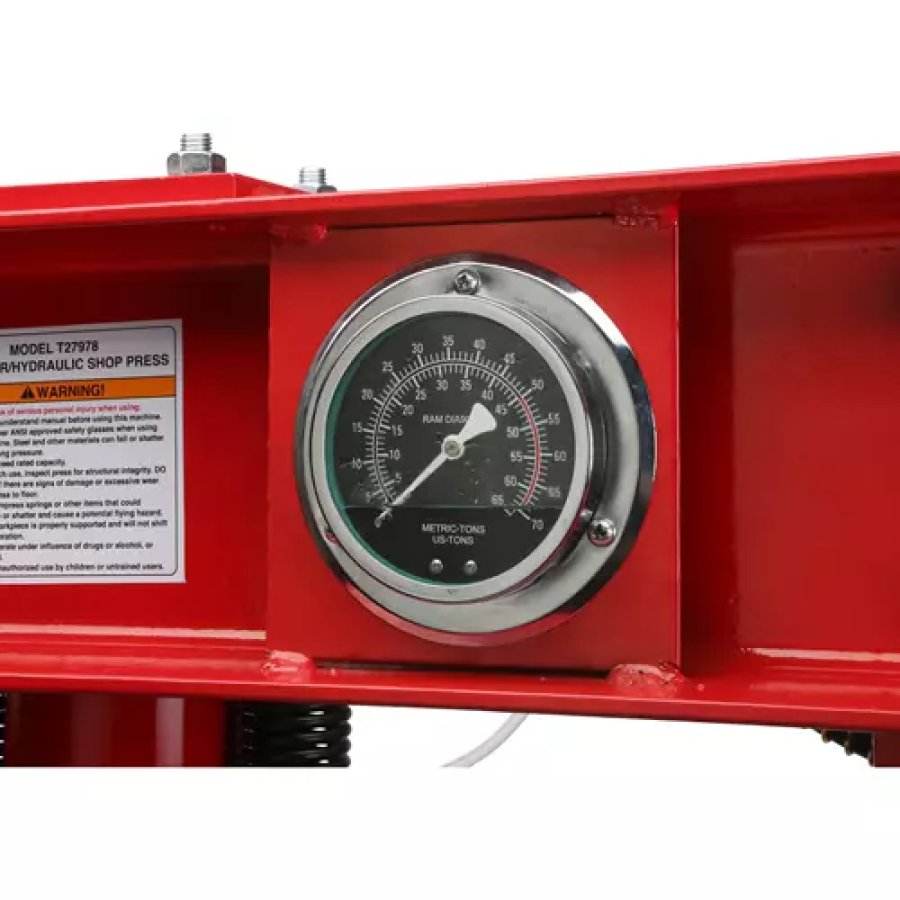

The pressure gauge allows the user monitor the ram force as applied to the workpiece using the pump handle.

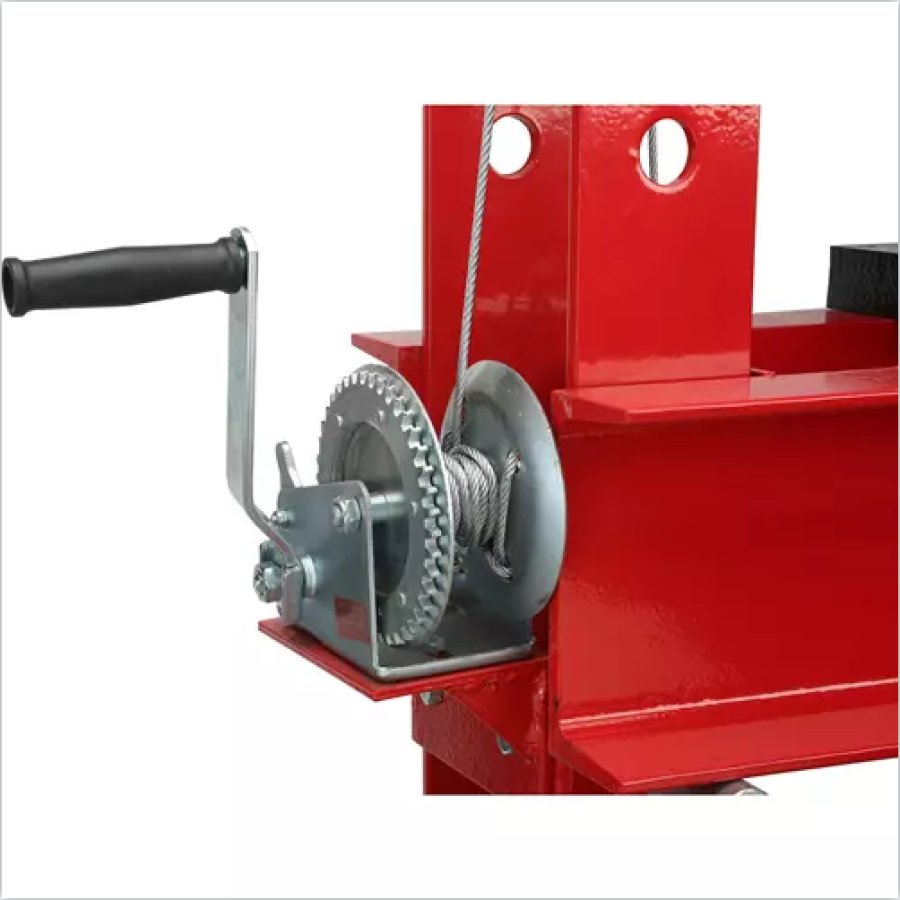

The winch and pulley system lowers and lifts the work table to accommodate workpieces of different sizes.

FEATURES:

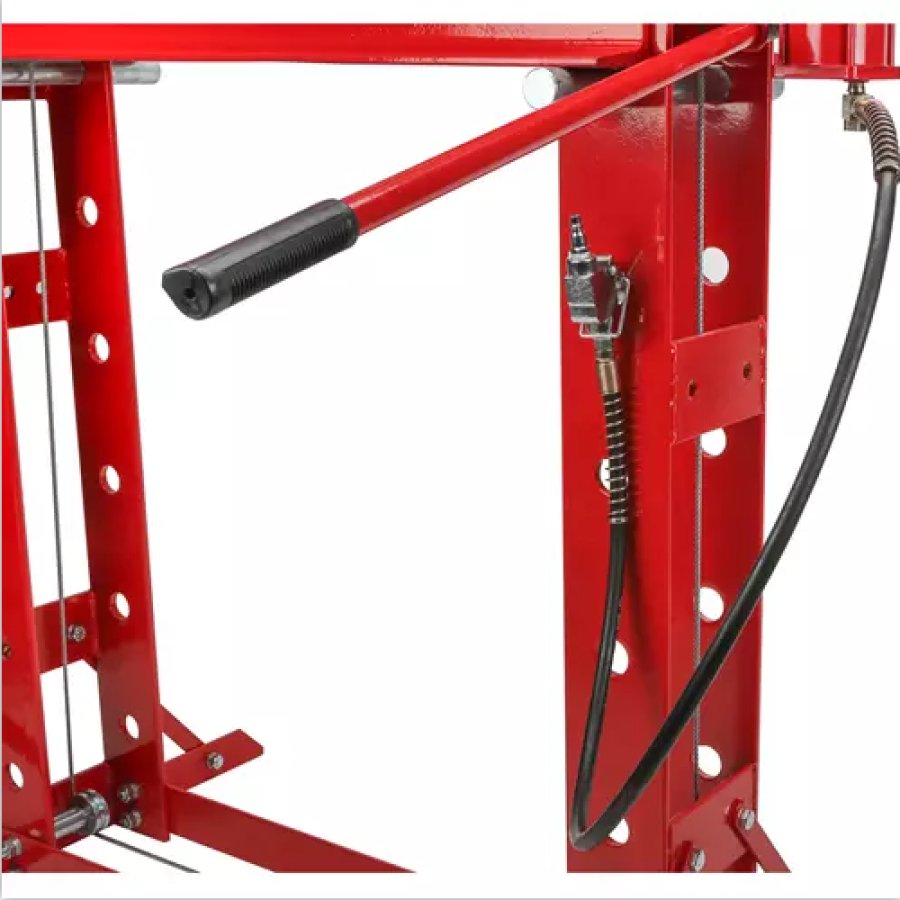

Pneumatic and hydraulic hand-pump operation

Winch and pulley system for lifting and lowering work table

Built-in pressure gauge

Welded steel frame for maximum rigidity

Adjustable table accommodates wide variety of operations

Includes two steel arbor plates

Capacity: 50T

Ram strock: 7-1/2"

Working range:0-40"

Working width:27-1/2"

Air pressure: 110-175PSI

Air inlet: 1/4" TPI

Operating model: by hand

Comes with 3 pressure plates

Adjustable bed height with suppor rods.

Used to install or remove gears, bushing or bearing

Great for straightening, pressing, bending or stamping
