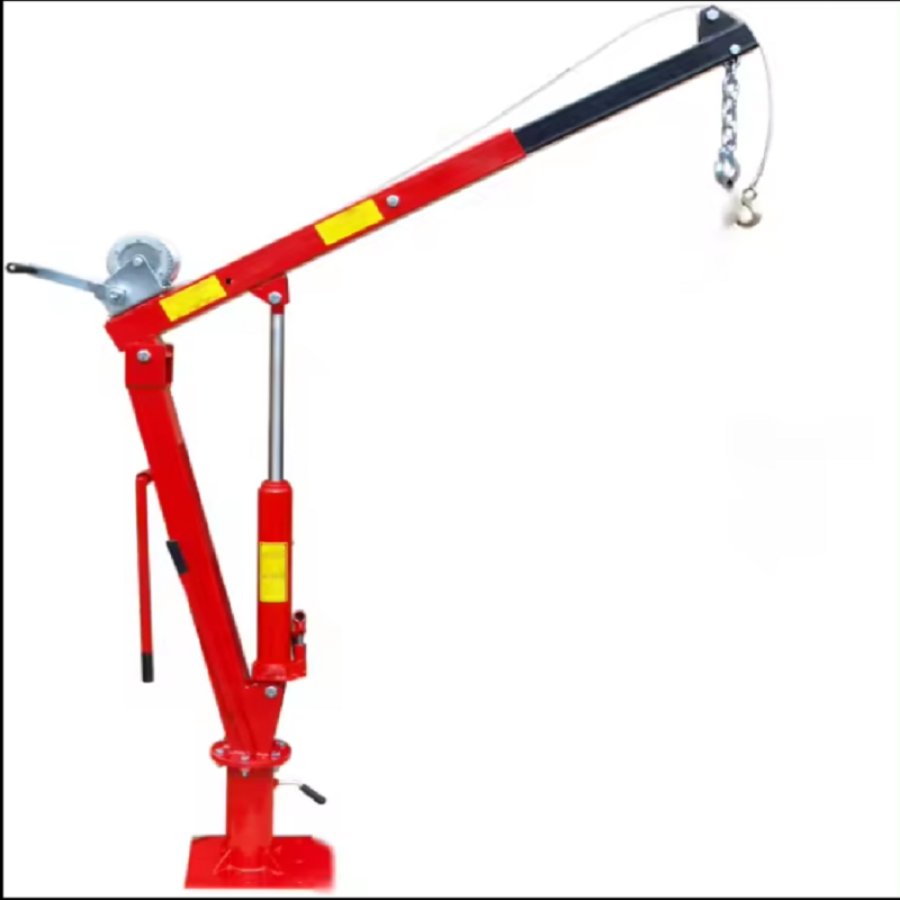

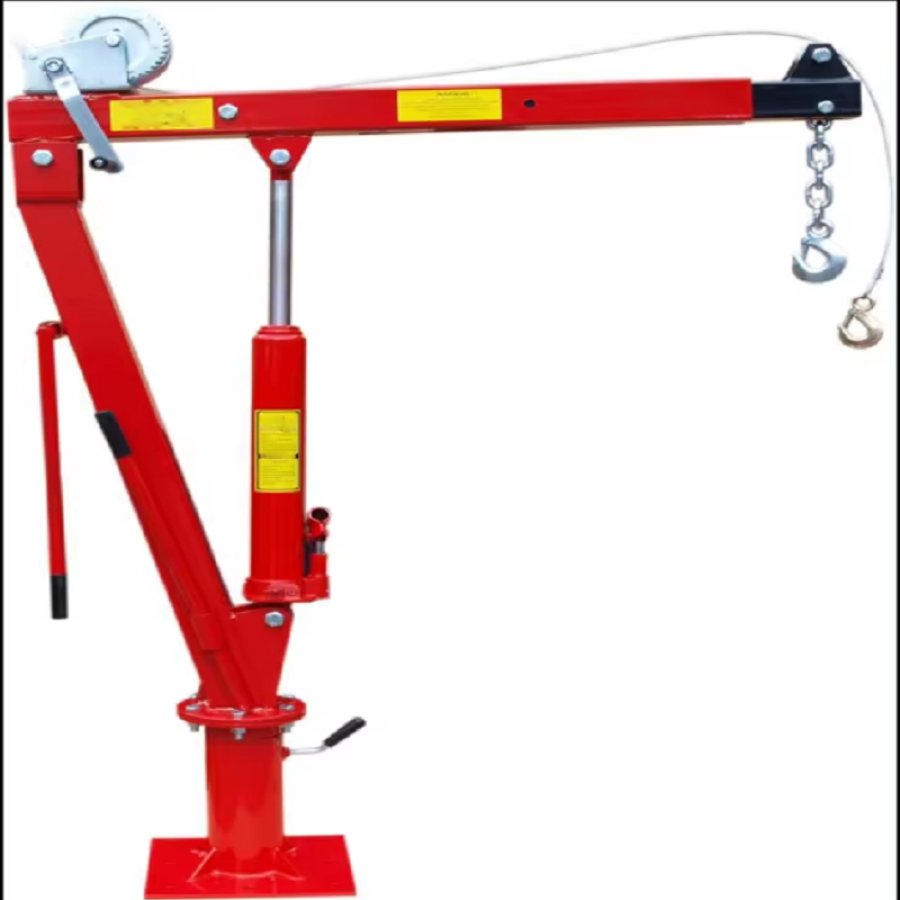

450kgs Pickup Crane With Winch

Load-bearing capacity with extended boom about 450 kgs

Load-bearing capacity when the boom is hidden about 900 kgs

Lifting height up to 1700 mm from base to hook

The length of the boom measured from the actuator to the hook:

67-104 cm (secured in 2-lengths)

Lifted by hydraulic actuator

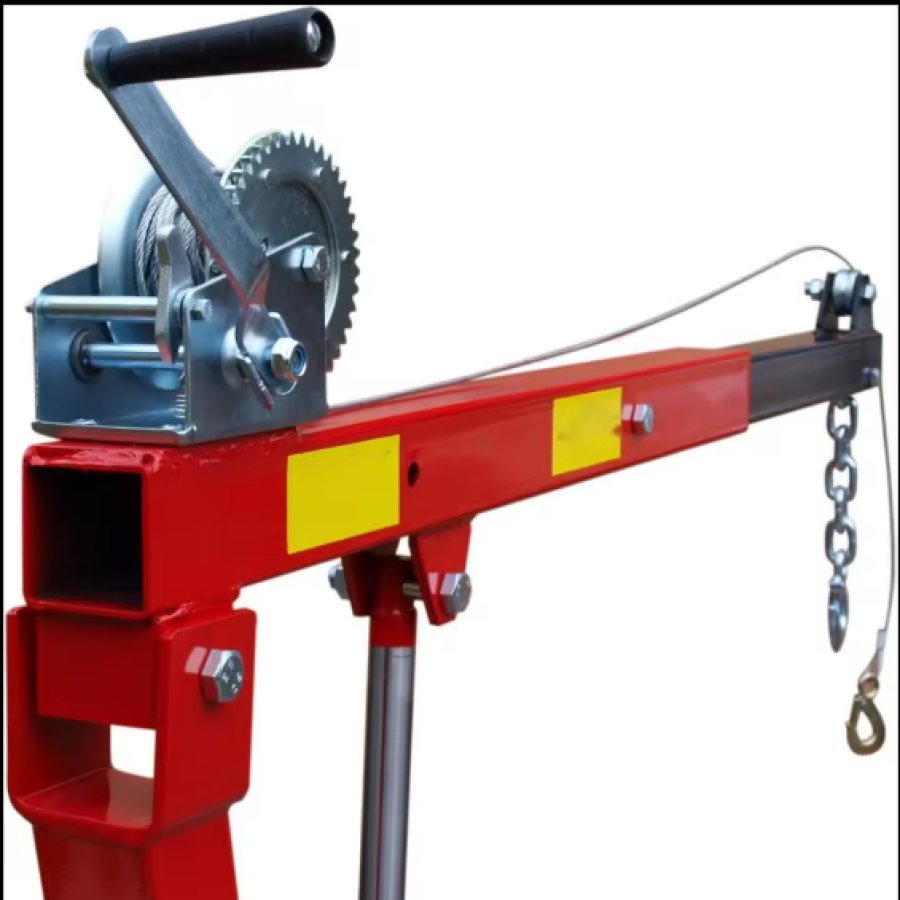

Winch with steel rope 6-meter length

Manual pumping raises the arm and

valve unscrewing lowers the arm Weight about 65 kg

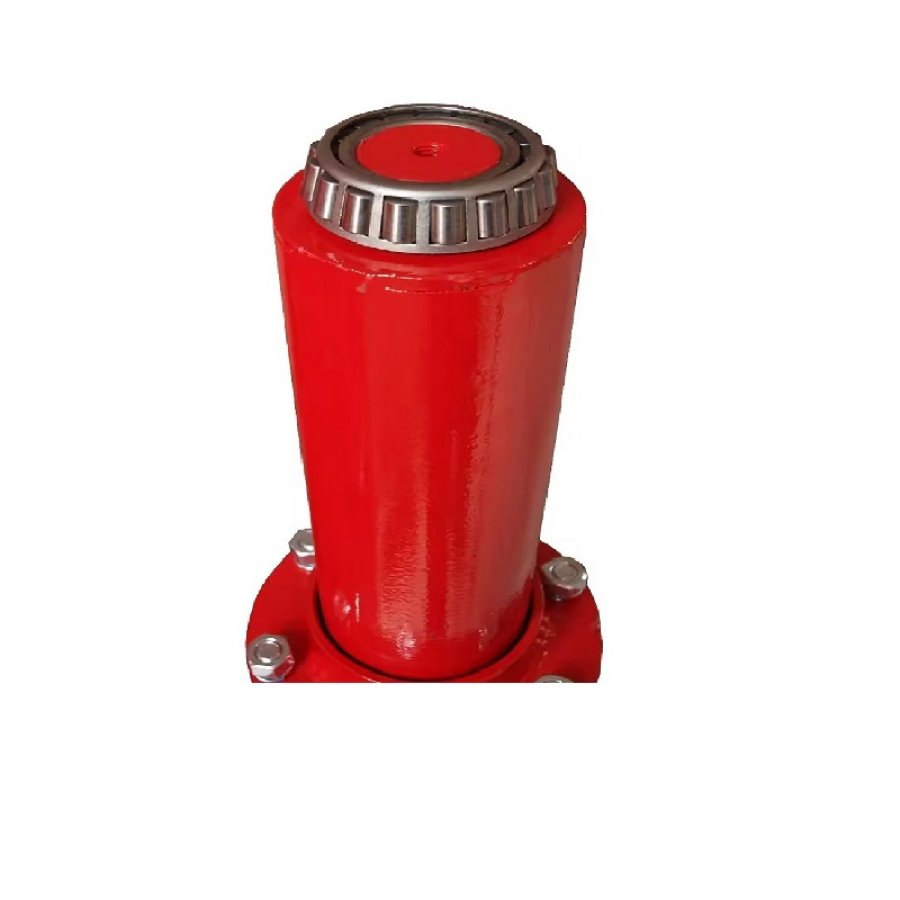

Easily rotated by 360°bearing ( as pictured )

Massive

Foldable

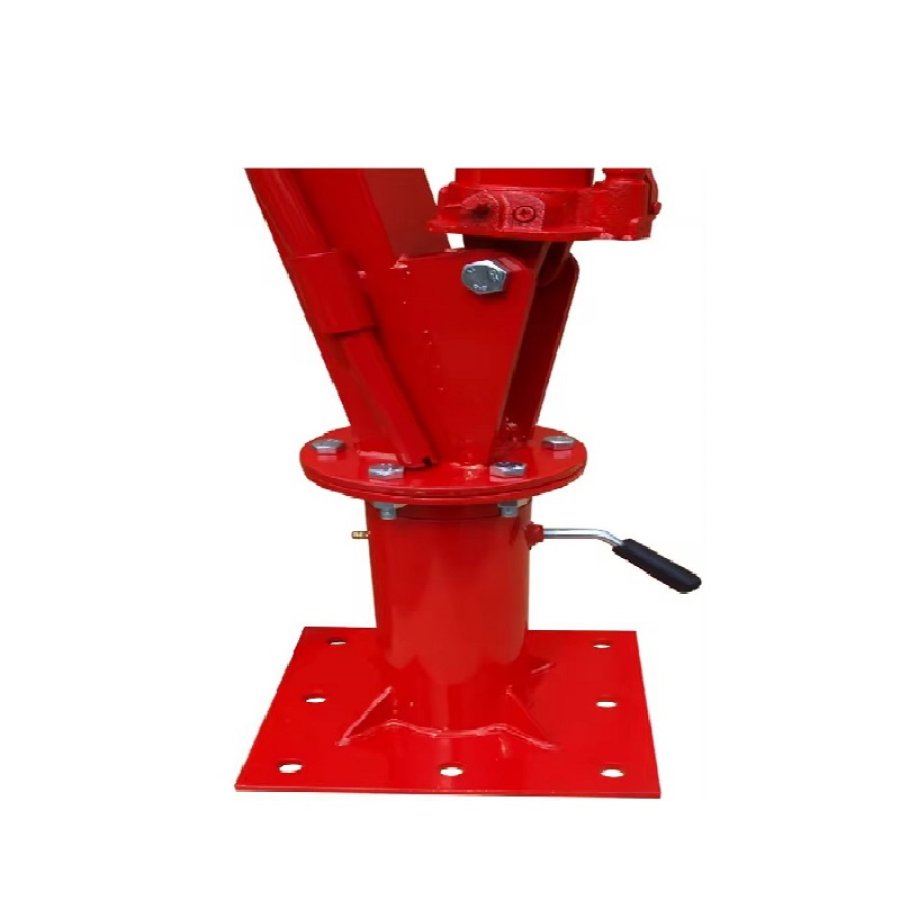

Base 270 mm x 270 mm ( with holes )

Packing:

N.W/G.W :42/43KGS

Package Size:#1 33x32x31cm;

                     #2 109x25x18cm
