Press And Pull Sleeve Kit-24 Pcs

It is designed to remove and install bearings including silent bearings, hydraulic bearings,bearing bushes, ball bearings, shaft seals, rubber bearings and many more.It is crafted to remove bushes, bearing or seals without the need of a press and to reduce the possibility of damaging the bearings/suspension housings.Tool press and pull sleeve kit can also be used with a workshop press if required.The spindles have thrust bearings fitted to both ends making the extracting and installing much easier.The end caps are also double sided making them a universal fit for the sleeves.

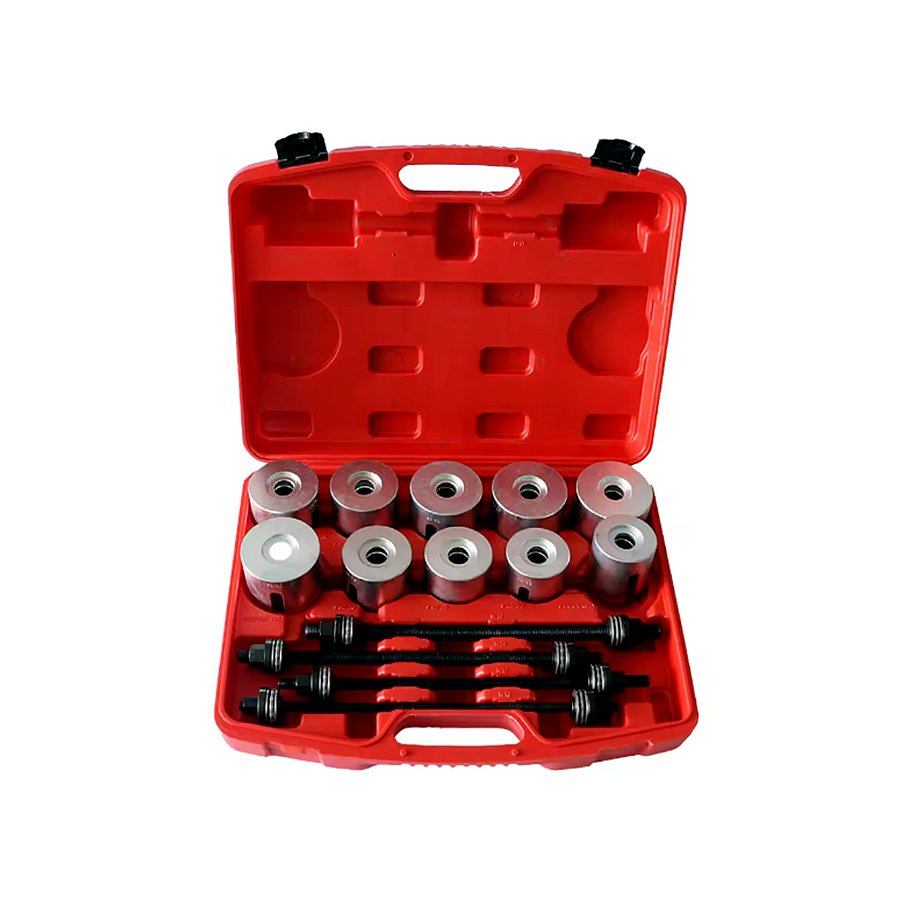

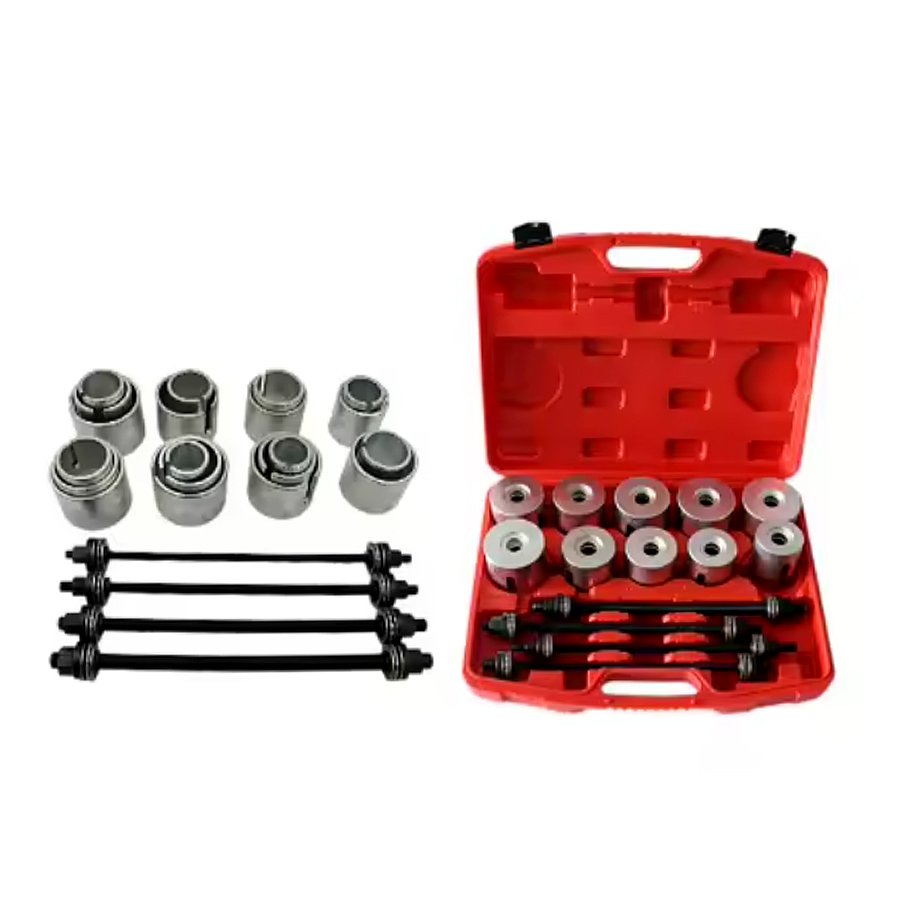

This tool kit set comes compelete with 20 press sleeves and 4 x pulling spindles with thrust bearings, 24 pieces in total.

Sleeve wall thickness: 5mm

Force screw length: 450mm

Nside diameter from 34 - 72mm in 2mm steps: 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72mm

Outside diameter from 44 - 82mm in 2mm steps: 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82mm

4 x pulling spindles with thrust bearings: m10, m12, m14, m16

Packing:

Qty/Ctn: 1pcs

N.W/G.W: 15/16kgs

Carton meas: 47x42x12cm
