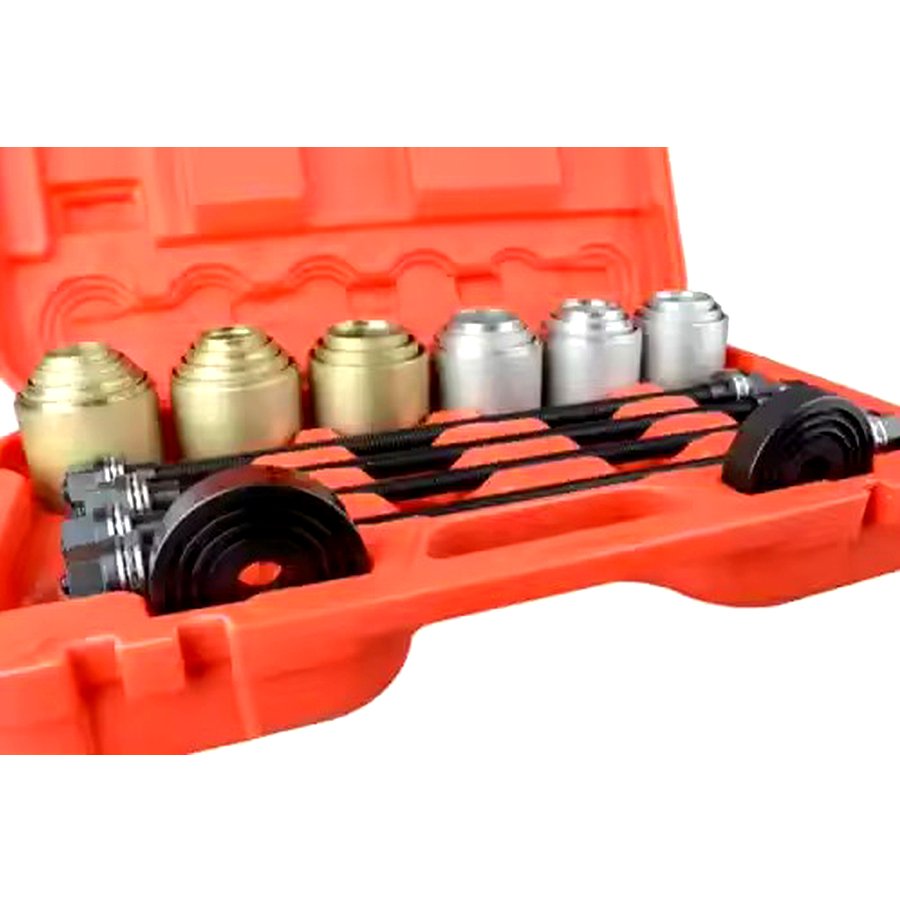

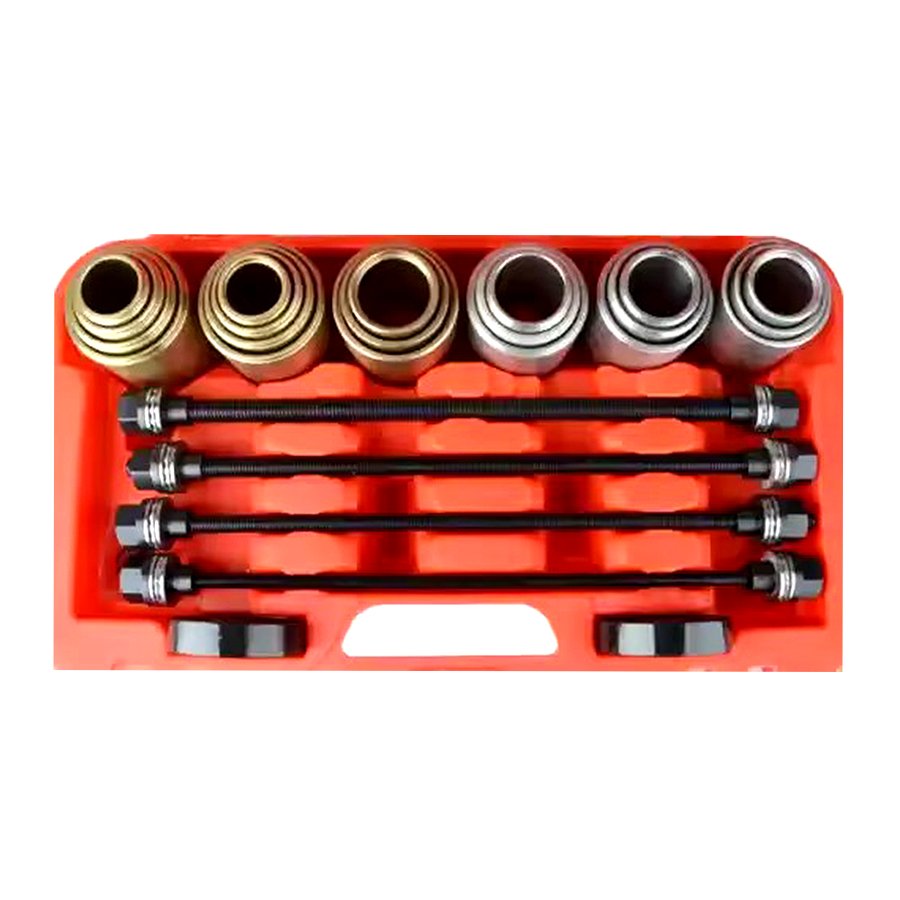

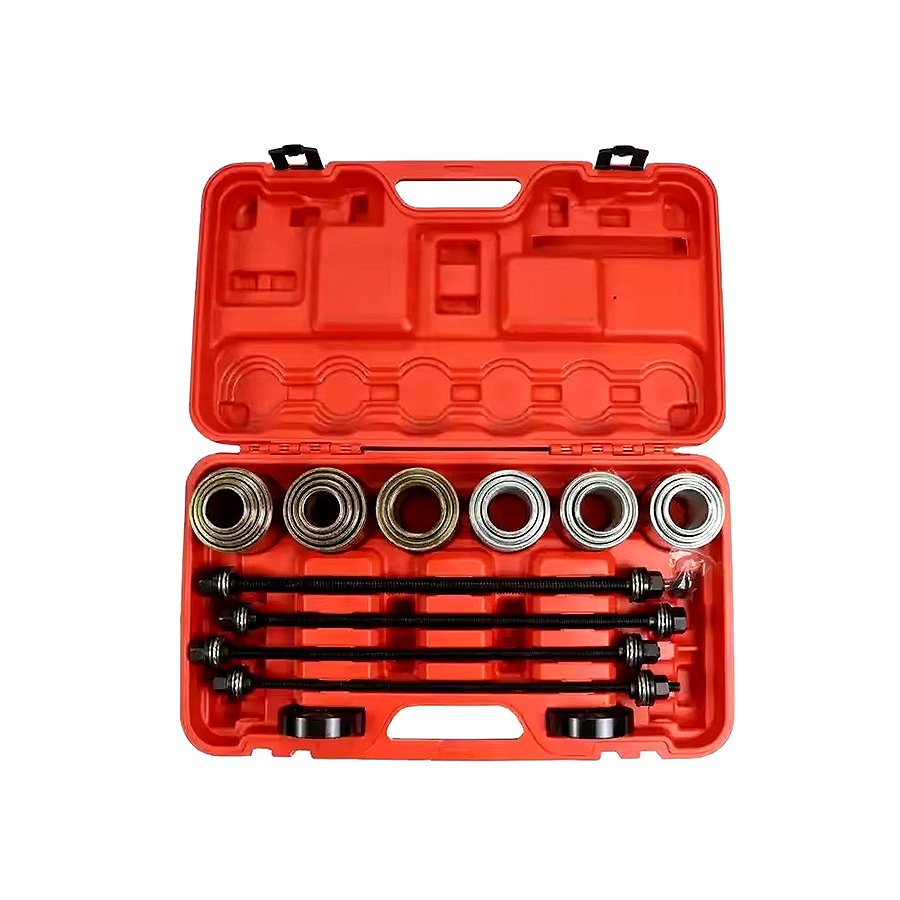

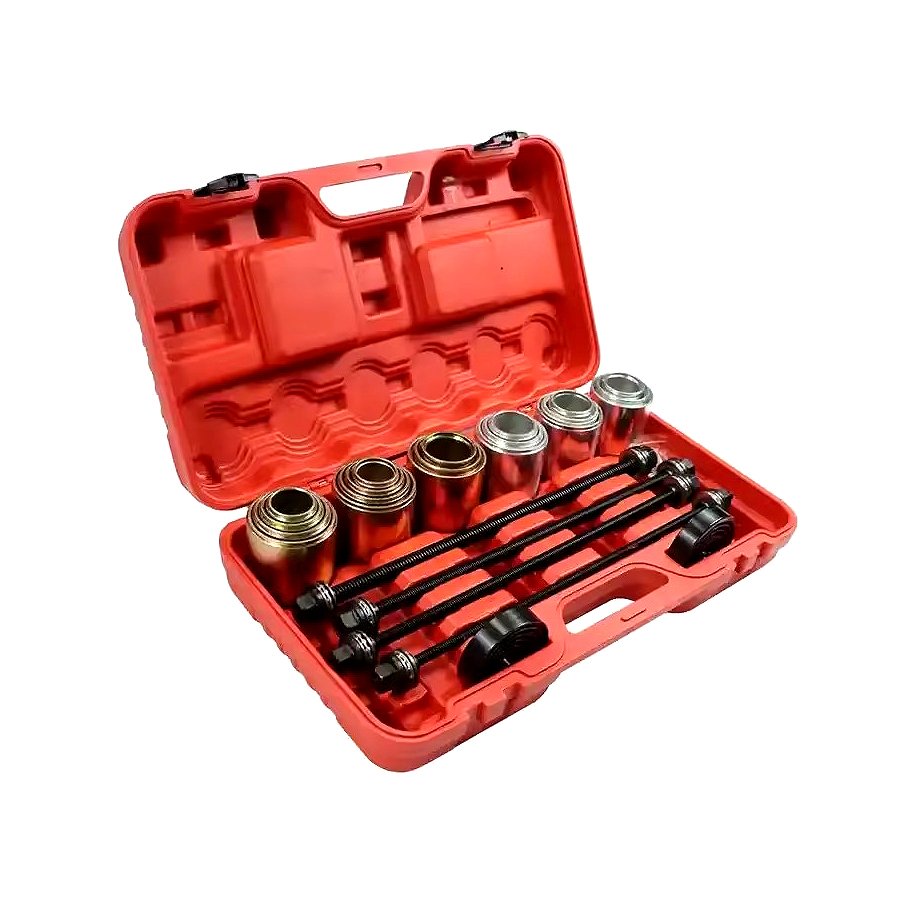

Pull And Press Sleeve Kit

The set includes:

▪ 4 screw presses threaded with ball bearings at the ends:

M10 x 450mm

M12 x 450mm

M14 x 450mm

M16 x 450mm

▪ Sleeves of height 93 mm each and outer diameter x inner in sequence:

Ø 82×72 mm

Ø 80×70 mm

Ø 78×68 mm

Ø 76×66 mm

Ø 74×64 mm

Ø 72×62 mm

Ø 70×60 mm

Ø 68×58 mm

Ø 66×56 mm

Ø 64×54 mm

Ø 62×52 mm

Ø 60×50 mm

Ø 58×48 mm

Ø 56×46 mm

Ø 54×44 mm

Ø 52×42 mm

Ø 50×40 mm

Ø 48×38 mm

Ø 46×36 mm

Ø 44×34 mm

▪ 2 washers for mounting and supporting sleeves.

Packing:

Qty/Ctn: 1PCS

N.W/G.W: 18/18.5KGS

Carton meas: 56X32X13CM
