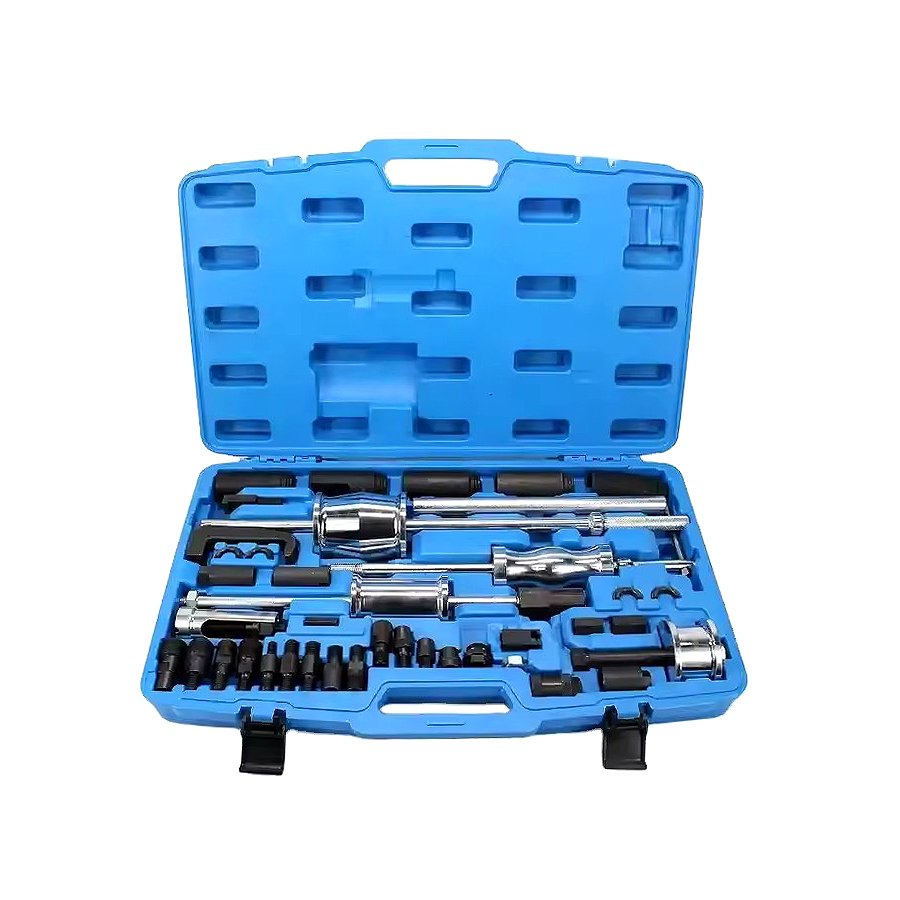

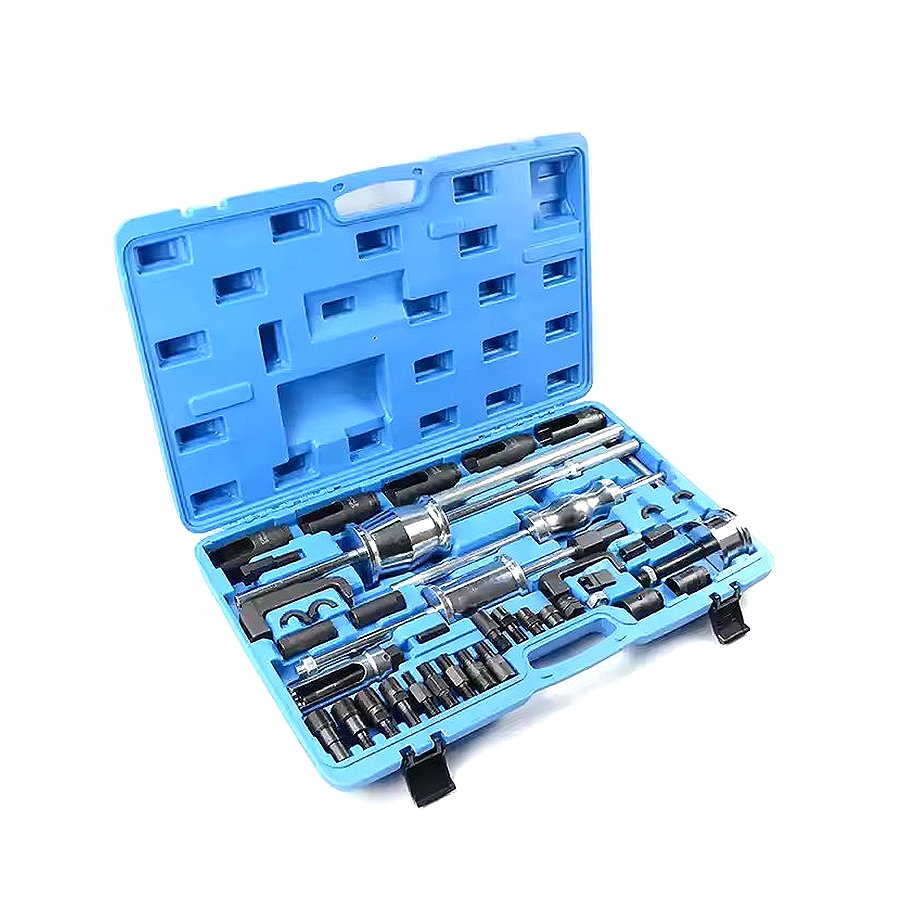

40Pcs Diesel Injector Extractor Master Kit

Includes also the following components:

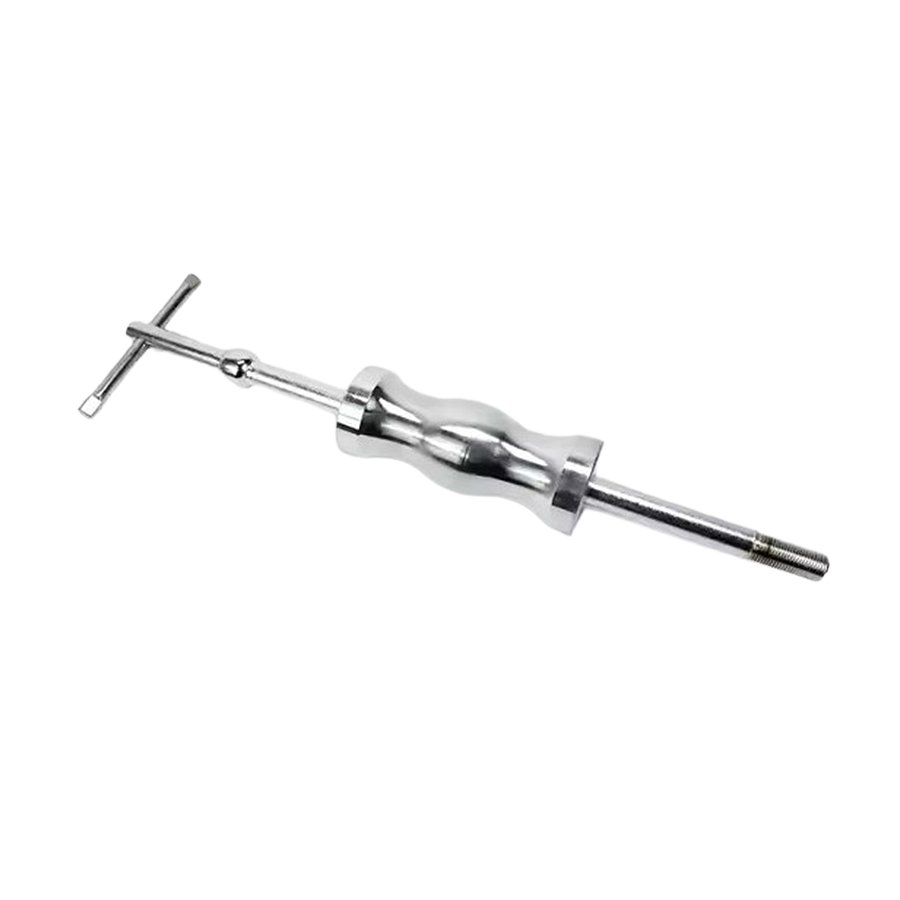

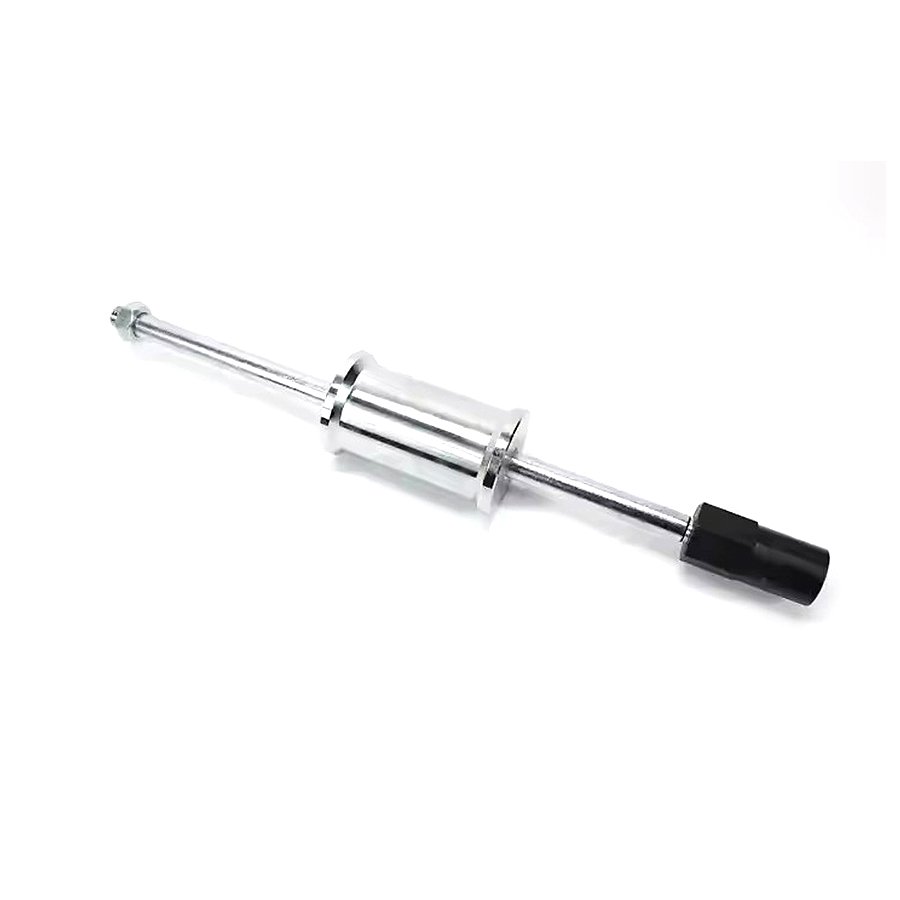

3 different slide hammers 1.6 kg; 160 mm length 2.7 kg; 460 mm length 5.1 kg; 600 mm length.

2 pulling claws with fork opening 13.7 x 18 mm; 105 mm length 12.7 x 19 mm; 130 mm length.

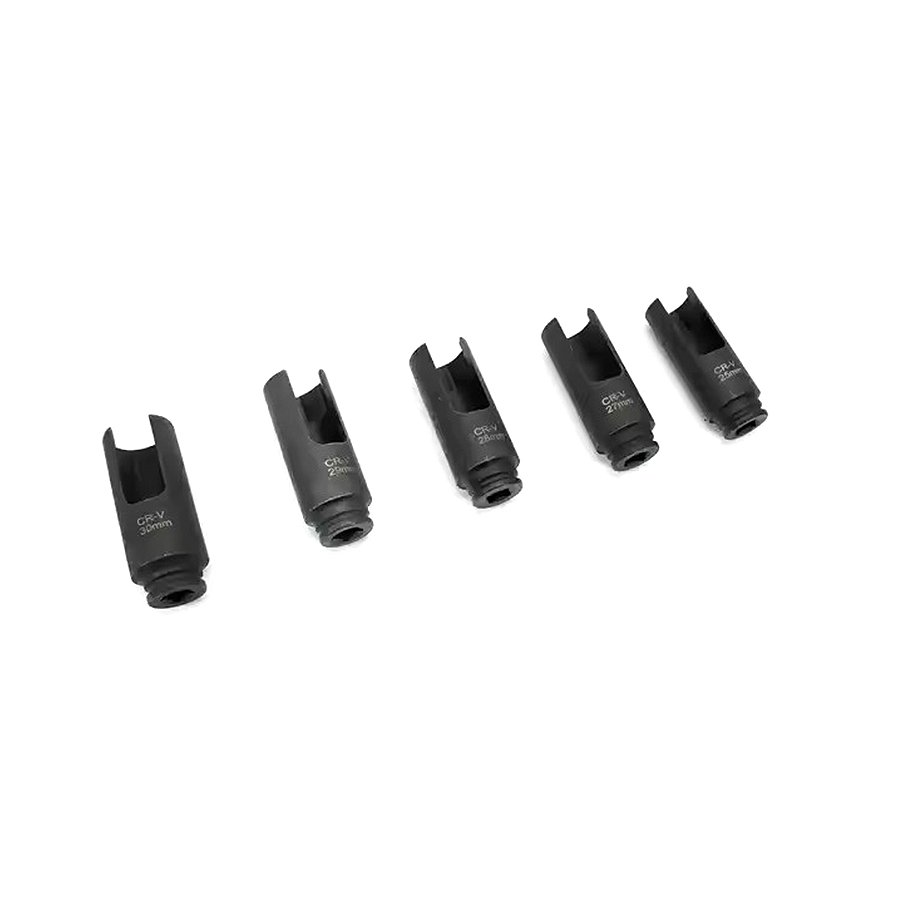

5 slotted 6-pt 1/2 sockets; 100 mm length sizes 25 - 27 - 28 - 29 - 30 mm.

Injector extractor; sleeve design; with shells outer diameter 35 mm.

Internal diameter 29 mm m17 x 1.0 spindle.

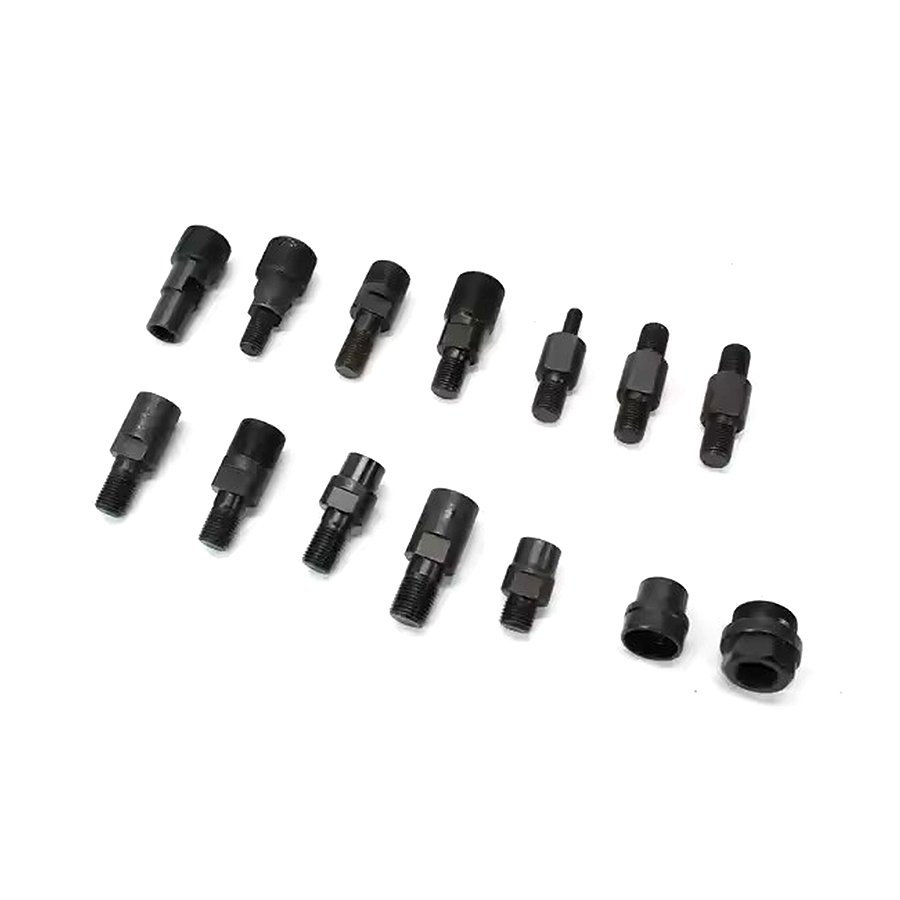

Pulling adapter with external thread m27 x 1.0 (3pcs) and m25 x 1.0.

Pulling adapter with internal thread m27 x 1.0 (3pcs).

Sliding hammer adapter for inner; outer and claw extractor.

Packing:

Qty/Ctn: 1PCS

N.W/G.W: 21/22KGS

Carton meas: 63.5X40X11CM
