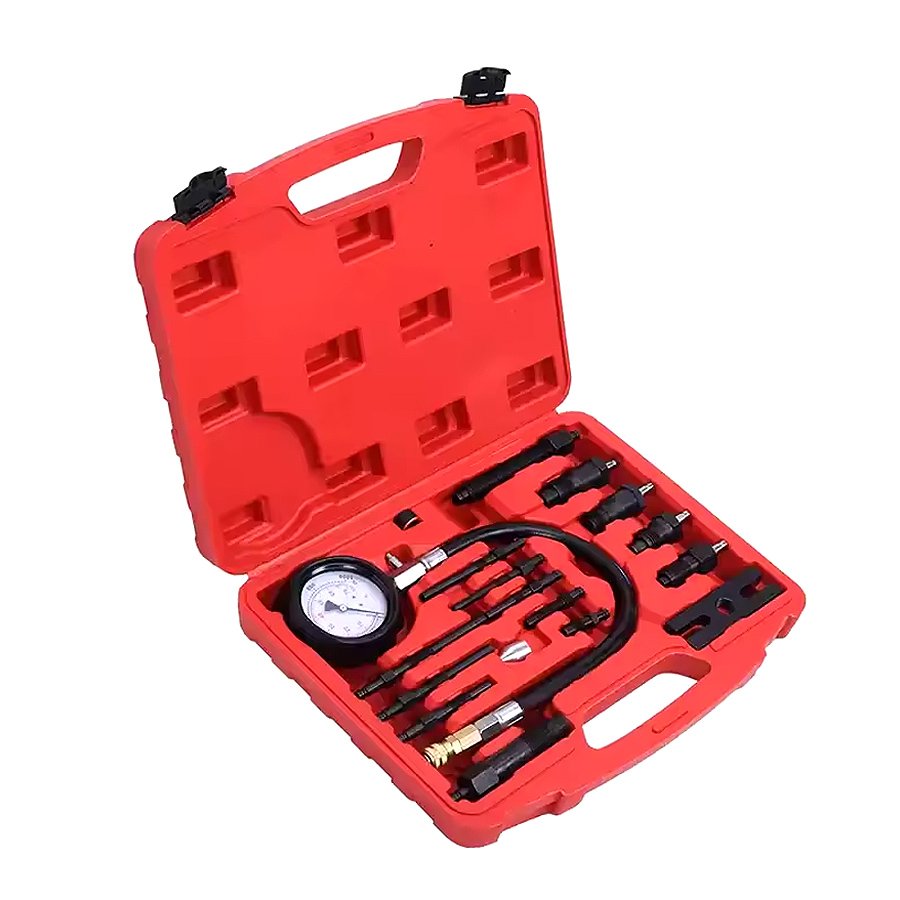

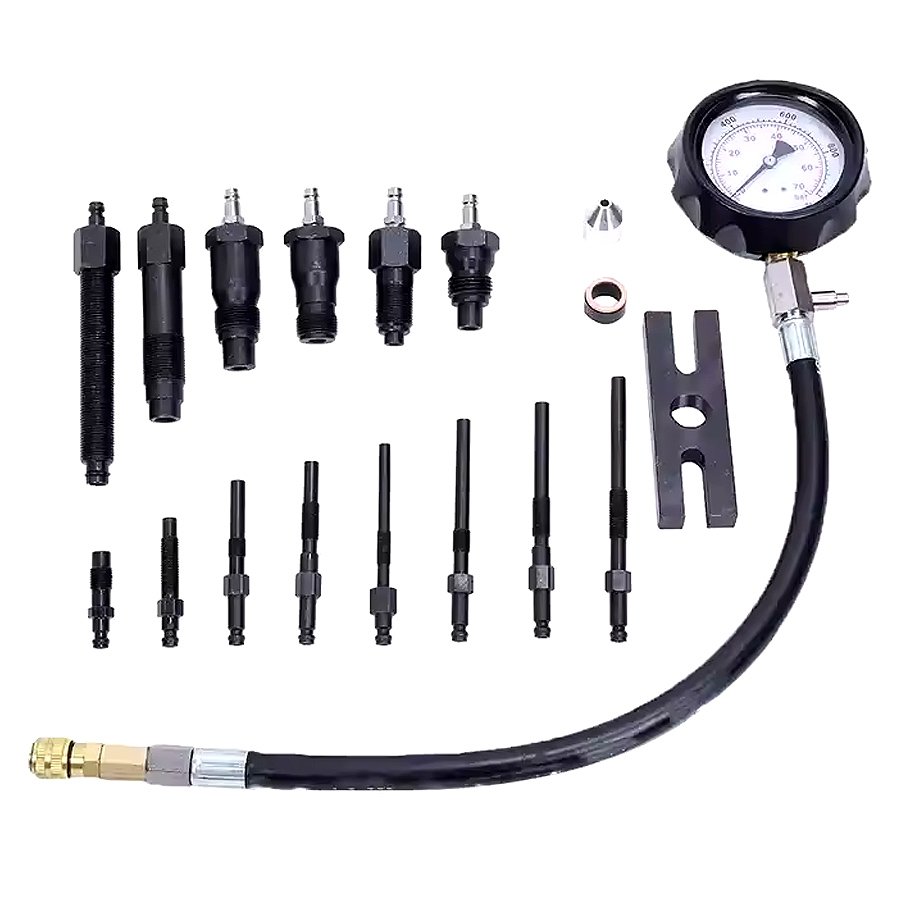

Diesel Compression Tester Cylinder

Durable construction.

Manometer scaled in Bar and psi units.

Range 0-70 Bar i 0-1000 psi.

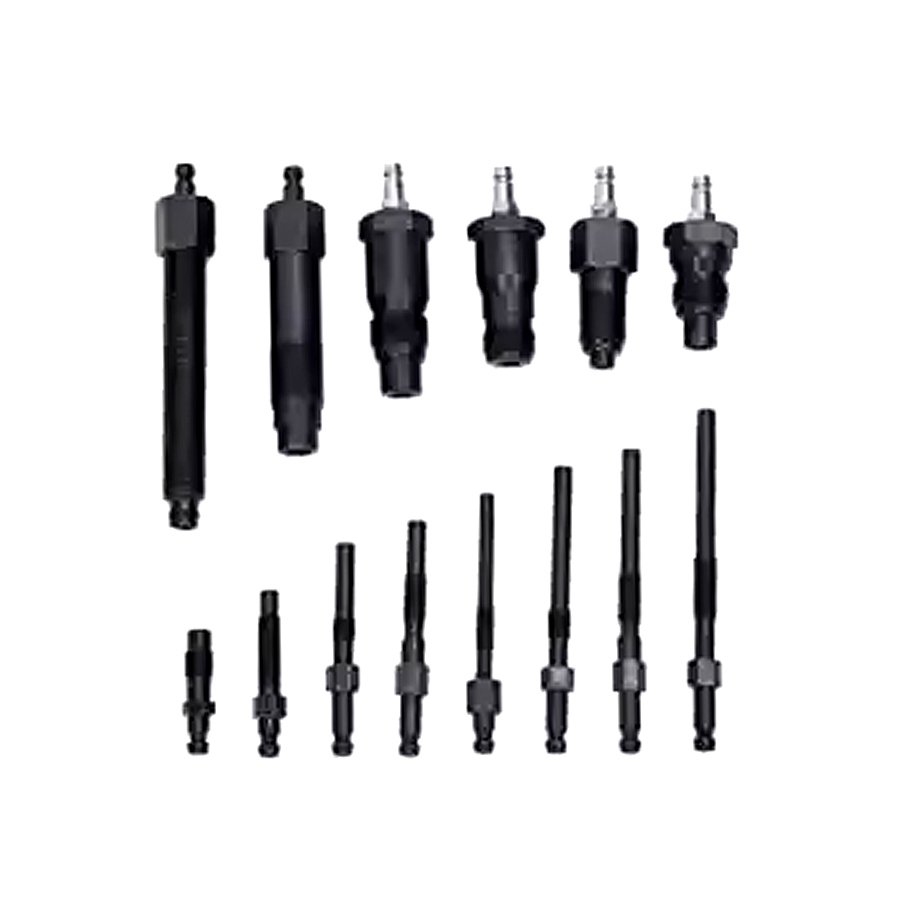

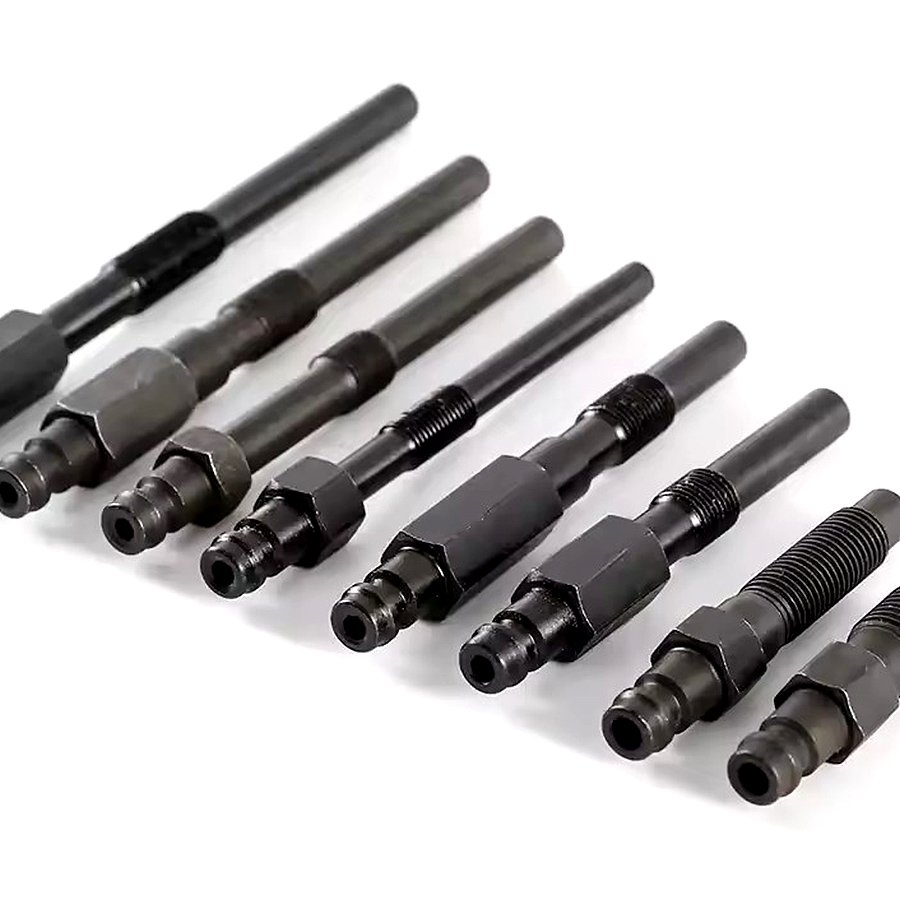

Adapters screwed directly into the place of the incandescent candle.

M8x1,0 length 102mm

M10x1,0 length 83mm

M10x1,0 length 91mm

M10x1,0 length 113mm

M10x1,0 length 119 mm

M10x1,25 length 67mm

M10x1,25 length 135mm

M12x1,25 length 51mm

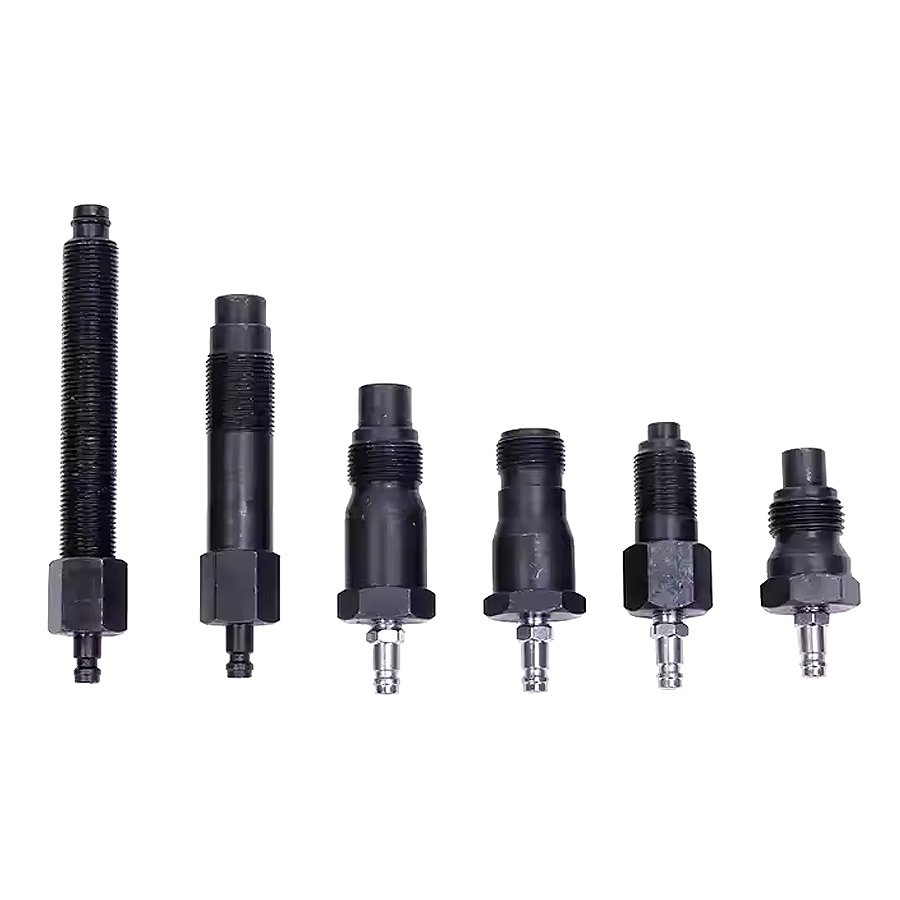

Adapters screwed directly into the injector.

M18x1,5 length 160mm

M20x1,5 length 75mm

M22x1,5 length 75mm

M24x1.5 length 88mm

M24x2,0 length 63mm

Rubber elastic cord 450 mm length.

After the measurement, the result is stopped (the indicator indicates the measurement).

The result is reset by pressing a button on the sampler.

The tester is used to measure the compression pressure in cylinders of diesel engines, diesel engines.

Packing:

Qty/Ctn:1PCS

N.W/G.W:2.8/3KGS

Carton Meas:33X28X8CM
