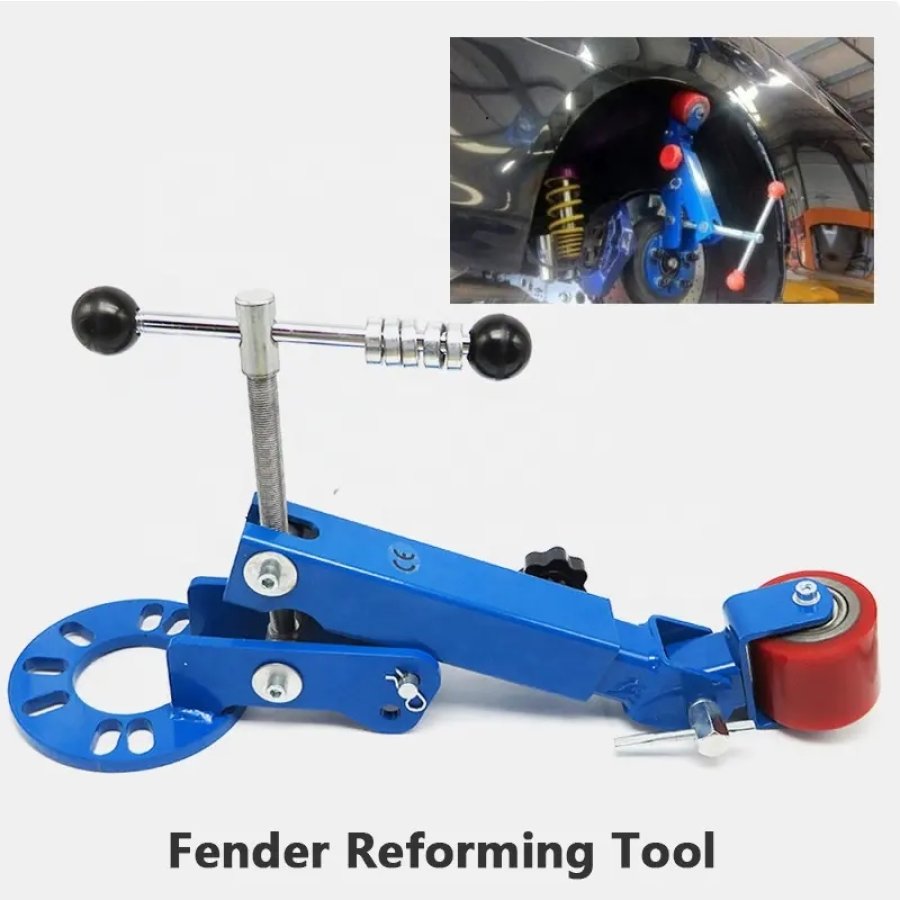

Fender Shape

Working principle:

Wheel arch shaping mainly uses PVC wheels to roll back and forth on the leaf board,

flattening the damaged concave parts on the iron plate to achieve the purpose of wheel arch repair.

This machine is suitable for repairing the wheel arches of most cars or light trucks.

 First, based on the number of screw holes on the vehicle wheel hub, choose 4 or 5 ears,

and fix the machine disc bottom plate and wheel hub with screws and nuts.

After selecting the appropriate gear and adjusting the length and angle of the telescopic arm,

the PVC roller can be used to roll back and forth on the concave and convex parts of the H-board.

Control the intensity well in homework.

Before starting the homework, the vehicle should be turned off and the support should be stable.

The wheel hub should be in a state where it can be rotated left and right by hand.


Packing:

Qty/Ctn:1PCS

N.W/G.W :6/6.5KGS

Carton Meas:42X28X12.5CM
