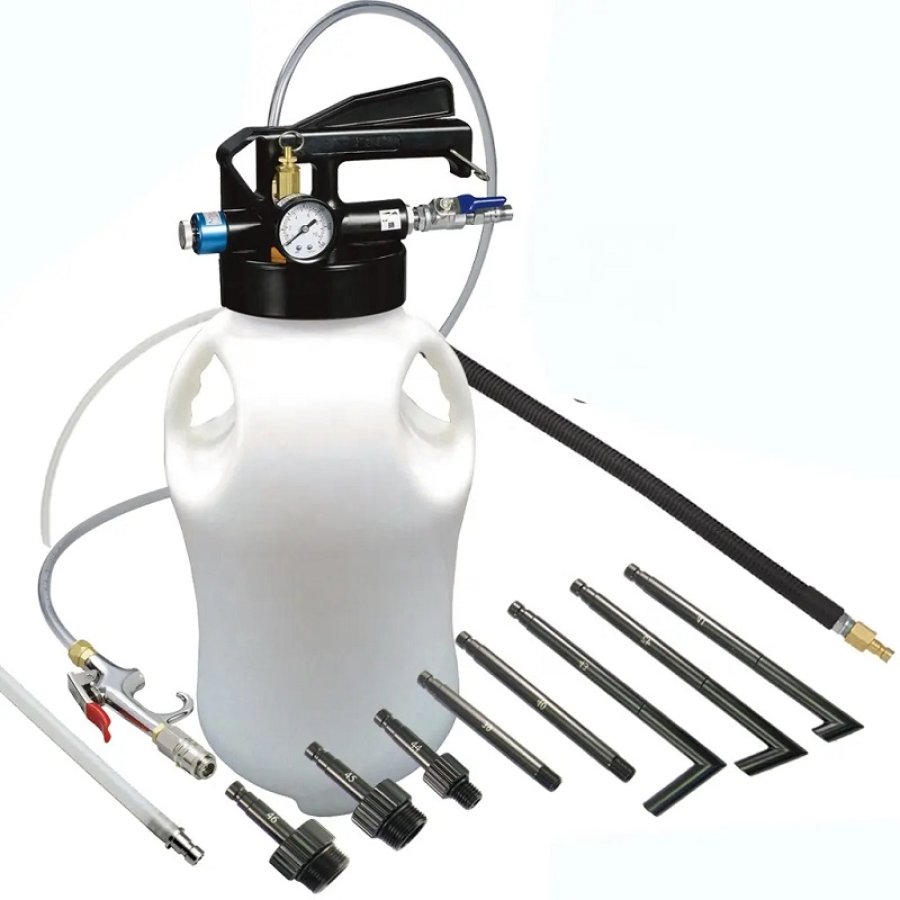

Well constructed reservoir tank
10L large capacity, marked with accurate scale from 1L to 10L
4 bases keep the reservoir stable, making the middle of the bottom is the lowest part,
to ensure that the internal liquid can be extracted completely
2 large humanized design handles, convenient to transport the full water tank

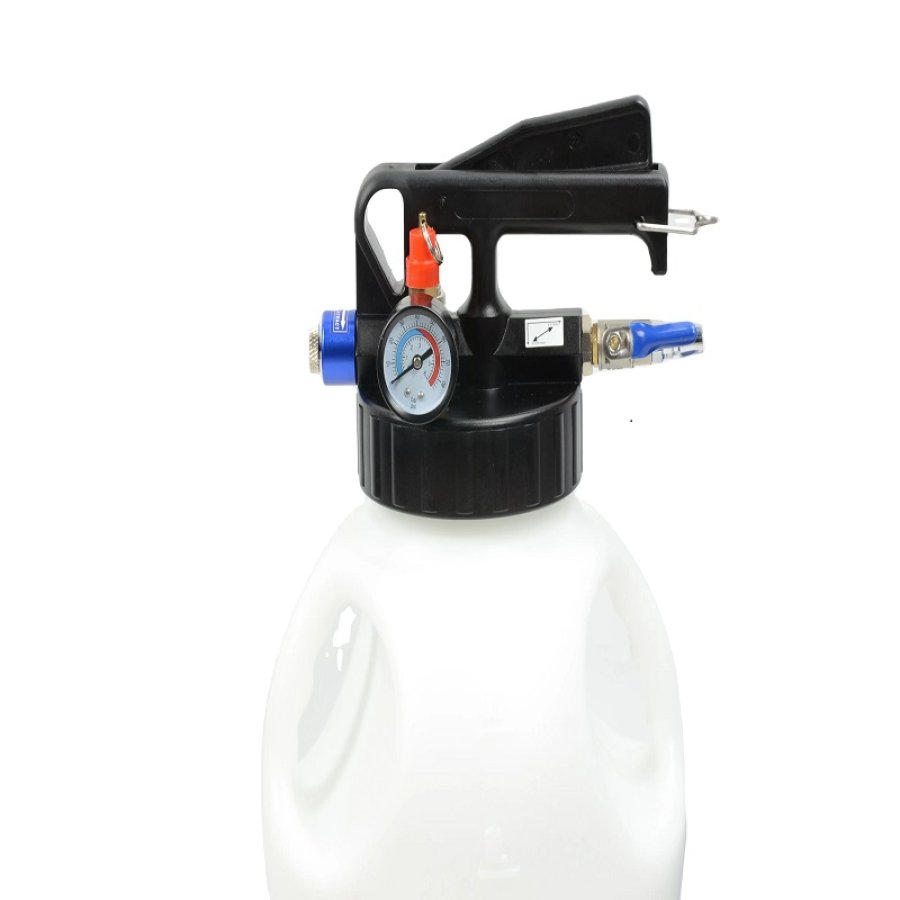

Pump assembly
Tightened sealing cap, very difficult to open, to ensure sufficient airtightness
Handle trigger is equipped with ring lock, hand-free while operating
2-way control valves (blue screw valve and air inlet ball valve) should be consistent to achieve the conversion
between extracting and dispensing
Safety valve will trigger and automatically deflate when the pressure exceeds 43psi /3bar
1/4" American style air inlet plug is preinstalled in the pump assembly,
and with a spare 1/4" European style air inlet plug for more choice
Pressure gauge (0-80psi/0-6bar) for monitoring the pressure change
Quick coupler for connecting main hose

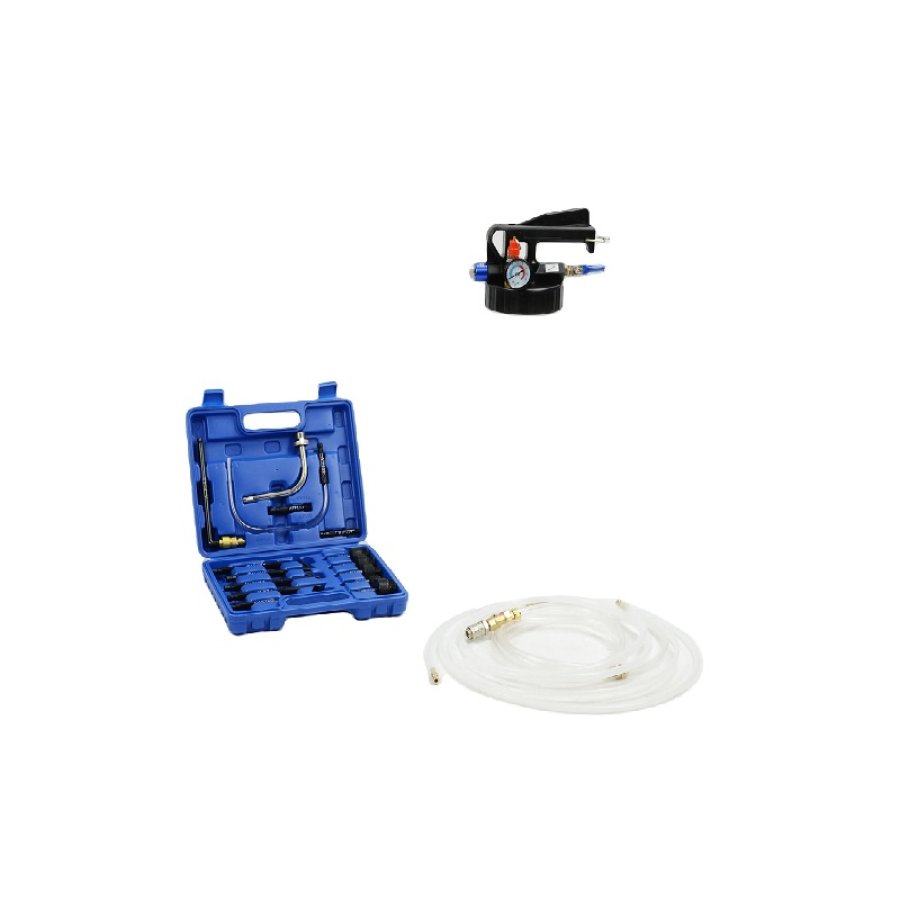

Hose with Flow Control Valve
80" long transparent hose for long-distance transportation
One side quick plug for connecting pump assembly, and the other side quick coupler to connect dipstick tube
or ATF adapter
Ball valve on the quick coupler to control the fluid flow, no need to keep pressing
Dipstick Tubes with Quick Plug
3PCS 1M dipstick tubes with 3 different outer diameter (6MM 8MM 10MM), meet the needs of
different sizes of dipstick tubes in engine.
Harder structure, easy to insert into the bottom of pipes
Metal ATF Adapters
