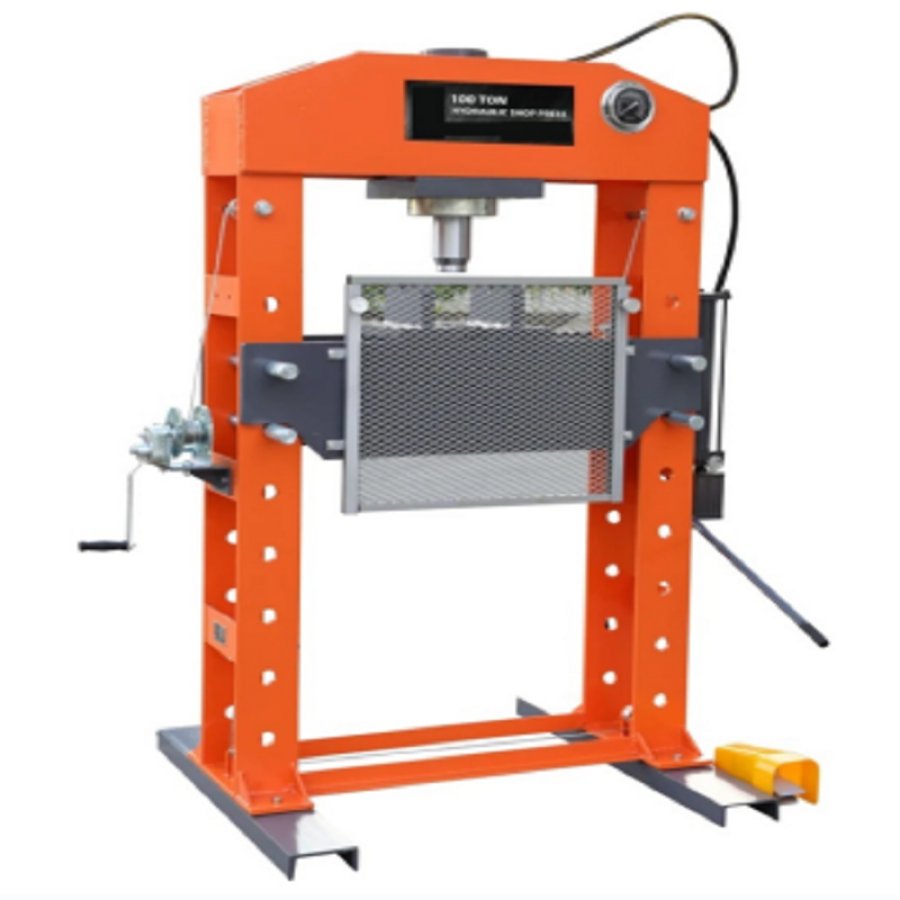

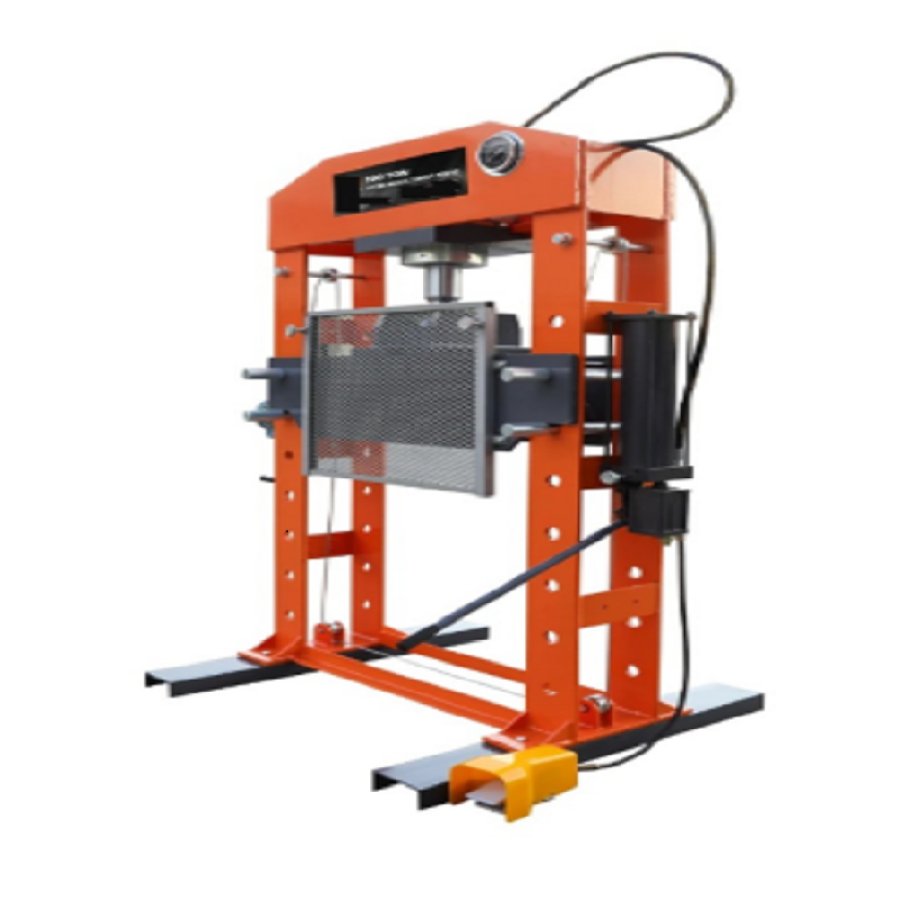

100T Air/Hydraulic Shop Press

Heavy constructed full-welded H frame to add rigidity and durability

Pressing head moves from side to side for multi work positioning

4-in oil filled gauge readable in US and metric tons allows to monitor pressing force accurately

Non-slip safety clutch and steel cable crank winch for pressing bed raising and lowering

Overload press valve prevents use beyond capacity

Protective grid guard for operation safety

Air/manual operating hydraulic cylinder provides steady ram speed

7-position bed height options for ultimate work flexibility

Pressing V-block included

Assembled size: 59"(L) x 40"(W) x 79"(H)

Pressing force capacity: 100 ton

Air pressure: 110-125 psi

Cylinder bore: 5"

Ram stroke: 11"

· Side stroke: 9"

· Bed depth: 11.75"

· Bed width: 32"

· Upright opening: 43.5"

Shipping Information

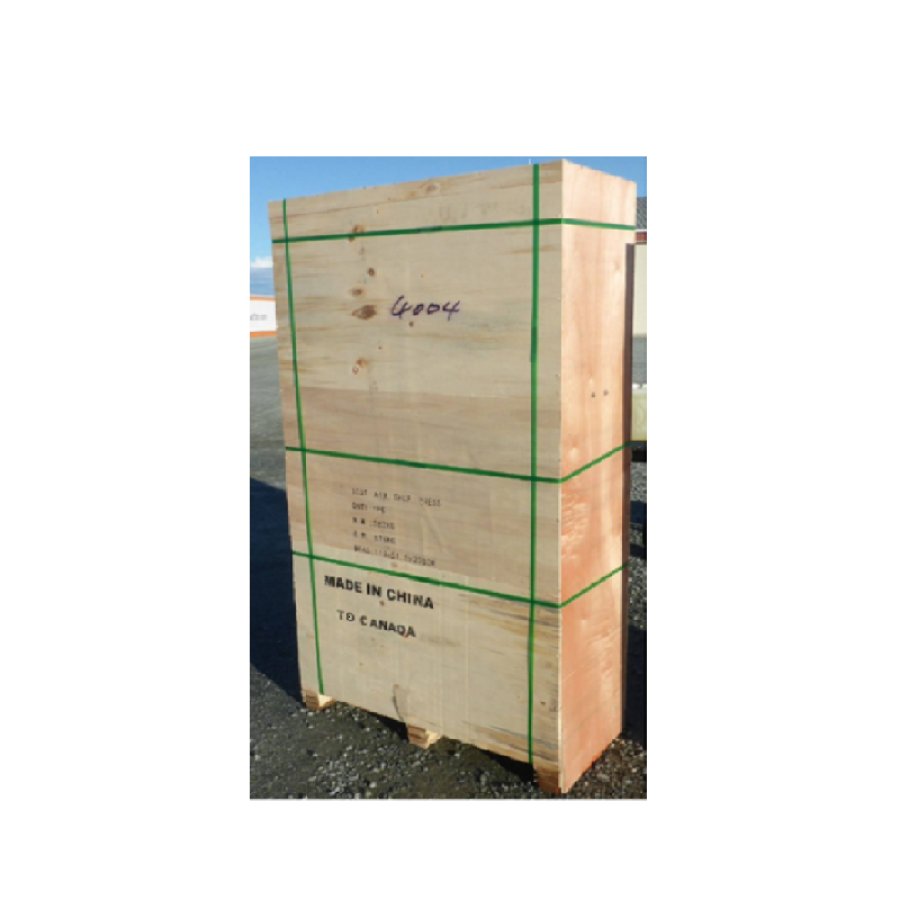

· Packed in a wood crate shipping box

· Shipping dimension: 82" x 45" x 20"

· Shipping weight: 1390 lb
